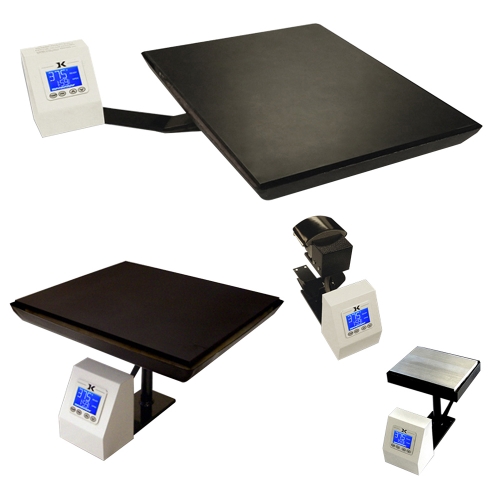

<div>Clamshell 16 X 20 Bottom Heat & Control</div> <div>Compatible with DK20A, DK20</div> <div>IDEAL for avoiding Scorching & Press Marks from the top platen.</div> <div>A bottom heated 16" x 20" platen heater and control is available for the DK20A and DK20 clamshell. The separately controlled heat pedestal drops into the position the standard ALL-THREAD table is located. This is ideal for thick embroidered appliques, certain lettering transfers, and other heat transfer and bonding applications requiring bottom heat to stop SCORCHING and SEARING of the top surface by heating from behind.</div> <div>Weight: 35 Lbs</div> <div>Electrical: 1800W / 15A / 110V</div> <div>Dimensions: 16" D x 20" W x 13" H</div> <div>Clamshell 14 X 16 Bottom Heat & Control</div> <div>Compatible with DK16A, DK16, DK20A, DK20</div> <div>IDEAL for avoiding Scorching & Press Marks from the top platen.</div> <div>A bottom heated 16" x 20" platen heater and control is available for the DK20A and DK20 clamshell. The separately controlled heat pedestal drops into the position the standard ALL-THREAD table is located. This is ideal for thick embroidered appliques, certain lettering transfers, and other heat transfer and bonding applications requiring bottom heat to stop SCORCHING and SEARING of the top surface by heating from behind.</div> <div>Weight: 28 Lbs</div> <div>Electrical: 1500W / 12A / 110V</div> <div>Dimensions: 16" D x 20" W x 13" H</div> <div>DK20S/SP 16 X 20 Bottom Heat & Control</div> <div>Compatible with DK20S, DK20SP</div> <div>IDEAL for avoiding Scorching & Press Marks from the top platen.</div> <div>A bottom heated 16" x 20" platen heater and control is available for the DK20S and DK20SP. The separately controlled heat pedestal drops into the position the standard ALL-THREAD table is located. This is ideal for thick embroidered appliques, certain lettering transfers, and other heat transfer and bonding applications requiring bottom heat to stop SCORCHING and SEARING of the top surface by heating from behind.</div> <div>Weight: 35 Lbs</div> <div>Electrical: 1800W / 15A / 110V</div> <div>Dimensions: 16" D x 20" W x 13" H</div> <div>DK20S/SP 14 X 16 Bottom Heat & Control</div> <div>Compatible with DK20S, DK20SP</div> <div>IDEAL for avoiding Scorching & Press Marks from the top platen.</div> <div>A bottom heated 14" x 16" platen heater and control is available for the DK20S and DK20SP. The separately controlled heat pedestal drops into the position the standard ALL-THREAD table is located. This is ideal for thick embroidered appliques, certain lettering transfers, and other heat transfer and bonding applications requiring bottom heat to stop SCORCHING and SEARING of the top surface by heating from behind.</div> <div>Weight: 28 Lbs</div> <div>Electrical: 1500W / 12A / 110V</div> <div>Dimensions: 16" D x 20" W x 13" H</div> <div>6 x 8 Label Bottom Heat Fixture</div> <div>Compatible with DK8, DK8T</div> <div>IDEAL for avoiding Scorching & Press Marks from the top platen.</div> <div>A bottom heated 6" x 8" platen pedestal is available for the DK8 and DK8T. The separately controlled heat pedestal drops into the position the standard ALL-THREAD table is located. This is ideal for thick embroidered appliques, certain lettering transfers, and other heat transfer and bonding applications requiring bottom heat to stop SCORCHING and SEARING of the top surface by heating from behind.</div> <div>Weight: 15 Lbs</div> <div>Electrical: 600W / 5A / 110V</div> <div>Dimensions: 8" D x 8" W x 13" H</div> <div>3 x 5 Curved Cap Bottom Heat Fixture</div> <div>Compatible with DK7, DK7T</div> <div>IDEAL for avoiding Scorching & Press Marks from the top platen.</div> <div>A bottom heated 3" x 5" platen pedestal is available for all CAP Presses. The separately controlled heat pedestal drops into the position the standard ALL-THREAD table is located. This is ideal for thick embroidered appliques, certain lettering transfers, and other heat transfer and bonding applications requiring bottom heat to stop SCORCHING and SEARING of the top surface by heating from behind.</div> <div>Weight: 10 Lbs</div> <div>Electrical: 450W / 4A / 110V</div> <div>Dimensions: 8" D x 8" W x 13" H</div>
